QCL-1800 Full-Automatic Blow Moulding Machine
QCL-1800 Full-Automatic Blow Moulding Machine

Model: QCL-1800
Categories: PET Blow Molding Machine > Full-Automatic Blow Molding Machine

(Prgrammable logc control):SIEMENS(Germany)
(Electric valve):GERMANY FESTO
(Signal switch):OMRON

QCL-1800 is designed by European CE symbol, and also is measured up to ISO9001 standard, which guarantees the quality of the products. And it is made up with three main parts: preform loading system, Heater channel & blow station. QCL-1800, which adopted high pressure clamping, makes self-adjustment in accordance with the different pressure needed during production, thus ensures the super clamping force. With such effective control over air energy and power, it takes a big part to lower costs and improve efficiency.

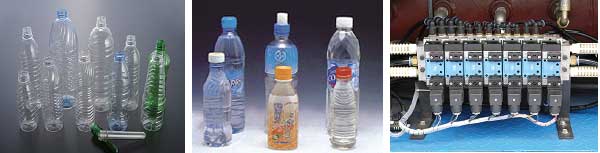

QCL-1800 automatic blow molding machine is widely used to produce varieties of PET plastic container and package for mineral water, beverage, oil, cosmetic and hot infusion, ect. Controlled by micro-computer with each main process fitted with safety of self-locking, it is operated by only one worker and the total production is completed automatically. Its wide utilization and reliable performance make it become popular and attractive to all bottle manufacturers.

1.The control system is the heart of QCL-1800. Together with Hi-tech touching-Man-Machine Interaction (MMI) control panel with user-friend, the whole control systempresents super performance with precise control, convenient parameter setup, obvious display and reasonable memory.

2.QCL-1800 automatic blow molding machine adopts infrared heating machine, whose superior thermal-radiation and thermal penetrability provide machine with powerful heating to meet strict preform heating requirement under speedy moving. Adjusting module and advanced microcomputer controller, can offer ideal heating for preform of different sizes. Each lamp's horizontal position is adjustable to keep the machine agile.

3.Pneumatic system provides the power for machine’s movement. World famous high quality pneumatic components equipped on this machine such as Festo from Germany, specially designed high-pressure valve, high precise action, long service life and reliable performance are their highlights. Network of those pneumatic components suppliers' global service ensures customers their prompt after-sale service locally for their pneumatic products used on QCL-1800

Famous Features
Patented Feeding system carries the preform automatically,Suit to produce 0.1 ~ 1.5L narrow neck PET container
Powerful heating unit with precision control and convenient adjusting device
Reliable sensor system monitor machine's auto running
Built-in memory of PLC holds numbers of bottle blowing data.
Advanced PLC control system with a use-friendly control panel
Equipped with special designed air storage unit
Cooling system to get perfect cooling result

Parametric Technology

2cavities 4cavities
 Theoretical output 1800-1600(0.5L)Pcs/H 3200Pcs/H
 Product Capacity 0.1-1.5L 0.1-1.5L
 Diameter of Bottle Mouth 15-38mm 15-38mm
 Diameter of Bottle Body 40-90mm 40-90mm
 Height of Bottle 280mm 280mm
 Max.Mold Thickness 190mm 200mm
 Effective Area of Mold 380x380m2 420x640mm2
 Clamping Stroke 150mm 150mm
 Clamping Force 200KN 200KN
 Diameter of Stretch Pin 12mm 12mm
 Max.Stretch Stroke 370mm 370mm
 Total Power 30KW 30KW
 Overall Weight 2.8T 2.8T
 Working Pressure 0.8-1.0MPa 0.8-1.0MPa
 Blowing Pressure 2.2-3.0MPa 2.2-3.0MPa
 Cooling Water(6-10℃) 0.3-0.5MPa 0.3-0.5MPa
 Size 2800x1700x1800 3600x2100x1800
